MQTT

Overview

PortDIC supports MQTT in two complementary modes:

Mode	Interface	Use Case
Embedded Broker	`MQTT` via `Port.BroadCast<MQTT>()`	Run an MQTT broker inside your process — no external server needed
Client Handler	`IMQTTHandler` via `[MQTTHandler]` / `[MQTTHandlerProp]`	Connect to any external MQTT broker; pub/sub with full event callbacks

Embedded Broker Mode

The MQTT broadcast handler starts an embedded MQTT broker inside the PortDIC process. Configure it with PortApplication.CreateBuilder() and obtain it via Port.BroadCast<MQTT>().

Quick Setup

using Portdic;

var config = PortApplication.CreateBuilder()
    .New(BroadcastType.MQTT)
    .MqttAddress("127.0.0.1:8080")
    .Users(new User("admin", "admin"))
    .AllowRemotes("127.0.0.1")
    .UseMqttProtocol(false)   // false = WebSocket, true = native MQTT/TCP
    .Build();

var mqtt = Port.BroadCast<MQTT>();
Port.Run();

Multi-User Production Setup

var config = PortApplication.CreateBuilder()
    .New(BroadcastType.MQTT)
    .MqttAddress("0.0.0.0:1883")
    .Users(
        new User("admin", "admin123"),
        new User("sensor01", "sensor_pass"),
        new User("client_app", "app_secret")
    )
    .AllowRemotes("192.168.1.0/24", "10.0.0.100")
    .UseMqttProtocol(true)    // native MQTT over TCP
    .Build();

var mqtt = Port.BroadCast<MQTT>();
Port.Run();

Broker Configuration Reference

Method	Type	Default	Description
`MqttAddress(address)`	`string`	`"127.0.0.1:8080"`	Broker listen address in `host:port` format
`Users(params User[])`	`User[]`	(required)	Authorized users. First entry is the master user
`AllowRemotes(params string[])`	`string[]`	(required)	Allowed client IPs, hostnames, or CIDR ranges
`UseMqttProtocol(bool)`	`bool`	`true`	`true` = native MQTT/TCP; `false` = MQTT over WebSocket

`User` class

new User("username", "password")
new User()   // defaults: name="admin", password="admin"

Transport Modes

`UseMqttProtocol`	Transport	Typical Port	Use Case
`true`	Native MQTT over TCP	1883 / 8883	MQTT clients, edge devices
`false`	MQTT over WebSocket	8080	Browser-based clients, dashboards

Monitoring with MQTT Explorer

MQTT Explorer provides a visual interface to inspect topics and messages in real time.

Field	Value
Host	`127.0.0.1`
Port	`8080` (WebSocket) or `1883` (MQTT)
Username	`admin`
Password	`admin`

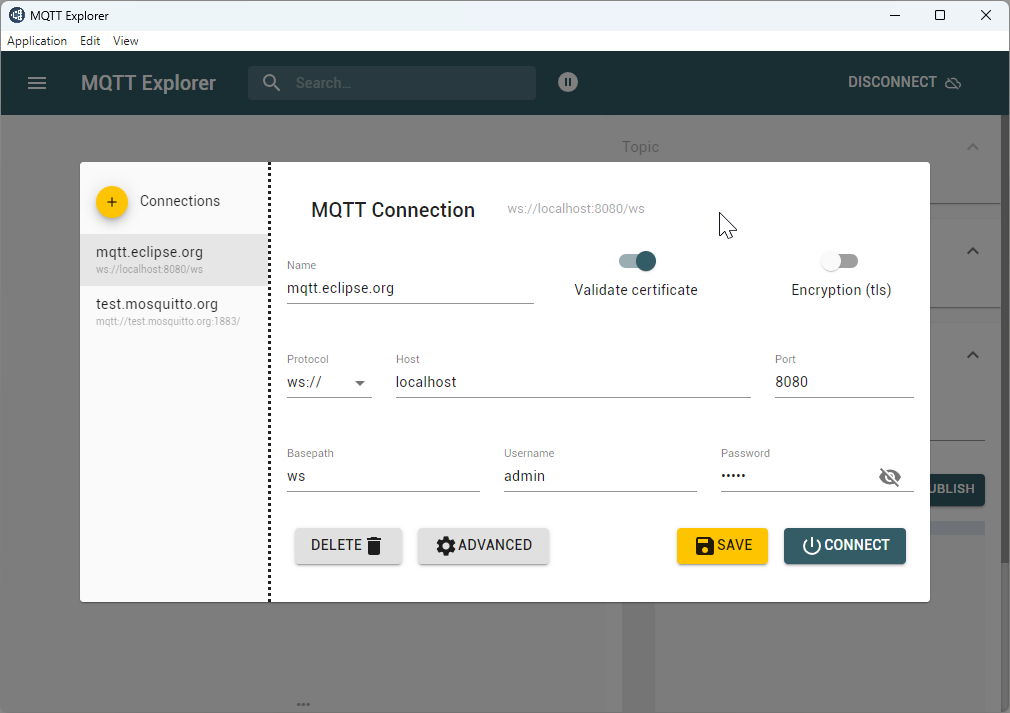

MQTT Explorer Login

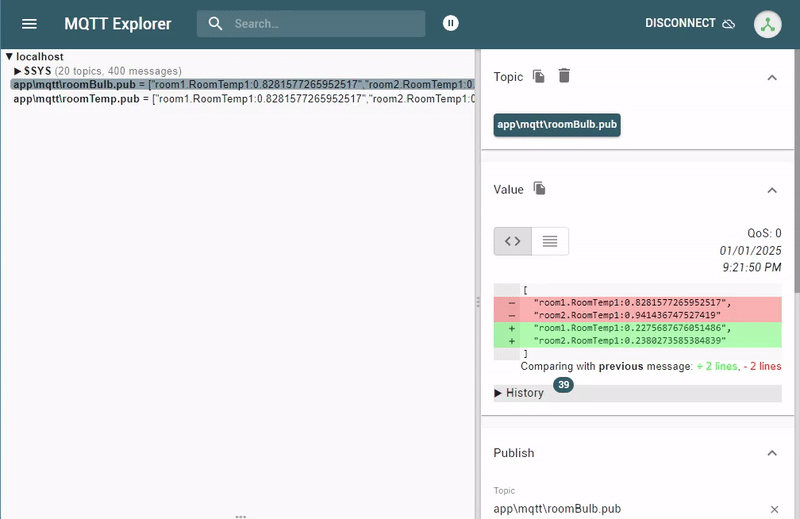

MQTT Live View

Publication File

Create a .pub file to declare which PortDIC data keys are published to MQTT topics:

File path: app/mqtt/room1.pub

room1 RoomTemp1   // [group-name] [message-name]
room2 RoomTemp1

Client Handler Mode

The handler pattern creates one independent MQTT client per class registration. This mode is backed by portmqttclient.dll (Rust FFI) and supports publish, subscribe, and full connection event callbacks.

1. Define an MQTT client class

using Portdic;
using Portdic.MQTT;

[MQTTHandler]
public class SensorClient
{
    [MQTTHandlerProp]
    public IMQTTHandler handler { get; set; } = null!;

    [Preset]
    private void Preset()
    {
        handler.SetHost("192.168.1.50");
        handler.SetPort(1883);
        handler.SetClientId("sensor-client-01");
        handler.SetUsername("user");
        handler.SetPassword("pass");

        handler.OnMessageReceived += OnMessage;
        handler.OnEvent += OnEvent;
    }

    private void OnMessage(string name, string topic, string payload, int qos)
    {
        Console.WriteLine($"[{name}] {topic}: {payload} (QoS {qos})");
    }

    private void OnEvent(string name, string eventType, string description)
    {
        Console.WriteLine($"[{name}] {eventType}: {description}");
        if (eventType == "CONNECTED")
        {
            handler.Subscribe("sensor/temperature/#");
            handler.Subscribe("sensor/humidity", qos: 1);
        }
    }
}

2. Register and run

Port.Add<SensorClient>("mqtt_sensor");
Port.Run();

Multiple broker connections

Each registration creates its own independent MQTT client:

Port.Add<LocalBrokerClient>("mqtt_local");
Port.Add<CloudBrokerClient>("mqtt_cloud");
Port.Run();

// Subscribe to a topic
handler.Subscribe("equipment/status");
handler.Subscribe("sensor/#", qos: 1);     // wildcard, QoS 1

// Publish a message
handler.Publish("equipment/status", "online");
handler.Publish("sensor/temp", "25.3", qos: 1, retain: true);

// Unsubscribe
handler.Unsubscribe("sensor/#");

// Disconnect
handler.Close();

QoS Levels

Level	Guarantee	Description
QoS 0	At most once	No delivery guarantee; possible message loss
QoS 1	At least once	Guaranteed delivery; possible duplication
QoS 2	Exactly once	Guaranteed delivery without duplication

API Reference

Attributes

Attribute	Target	Description
`[MQTTHandler]`	Class	Marks the class as an MQTT client handler container
`[MQTTHandlerProp]`	Property	Injects the `IMQTTHandler` instance
`[Preset]`	Method	Called before `Open()` to configure the handler

Configuration methods

Method	Description
`SetHost(string host)`	Broker address. Default: `"127.0.0.1"`
`SetPort(int port)`	Broker port. Default: `1883`
`SetClientId(string clientId)`	MQTT client ID. Defaults to the registration key if empty
`SetUsername(string username)`	Broker authentication username
`SetPassword(string password)`	Broker authentication password
`SetKeepAlive(int seconds)`	Keep-alive interval in seconds. Default: `60`
`SetCleanSession(bool)`	Discard previous session state on connect. Default: `true`

Connection methods

Method	Returns	Description
`Open()`	`ERROR_CODE`	Connect to the MQTT broker
`Close()`	`ERROR_CODE`	Disconnect from the broker
`IsConnected`	`bool`	`true` if currently connected to the broker

Method	Returns	Description
`Publish(topic, payload, qos, retain)`	`int`	Publish a message. Returns `0` on success
`Subscribe(topic, qos)`	`int`	Subscribe to a topic filter. Returns `0` on success
`Unsubscribe(topic)`	`int`	Unsubscribe from a topic. Returns `0` on success

Logging

Method	Description
`SetLogger(string rootPath)`	Enable hourly-rotated log files. Format: `mqtt_{name}_{date}_{hour}.log`
`WriteLog(string message)`	Write a custom entry to the log file

Events

`OnMessageReceived`

Fired when a message arrives on a subscribed topic.

handler.OnMessageReceived += (string name, string topic, string payload, int qos) =>
{
    Console.WriteLine($"[{name}] {topic}: {payload}");
};

Parameter	Description
`name`	Client registration key
`topic`	Topic the message was published on
`payload`	Message payload as a UTF-8 string
`qos`	QoS level (0, 1, or 2)

`OnEvent`

Fired on connection state changes and errors.

handler.OnEvent += (string name, string eventType, string description) =>
{
    Console.WriteLine($"[{name}] {eventType}: {description}");
};

`eventType`	Triggered When
`CONNECTED`	Connected to the broker
`DISCONNECTED`	Disconnected from the broker
`SUBSCRIBED`	Topic subscription confirmed
`UNSUBSCRIBED`	Topic unsubscription confirmed
`PUBLISHED`	Message published successfully
`ERROR`	Error occurred (`description` contains detail)

Error Codes

Code	Value	Meaning
`ERR_CODE_NO_ERROR`	`1`	Success
`ERR_CODE_OPEN`	`-1`	Open/connect failed
`ERR_CODE_DLL_NOT_LOADED`	`-2`	`portmqttclient.dll` not loaded
`ERR_CODE_PORTNAME_EMPTY`	`-3`	Client name not set
`ERR_CODE_DLL_FUNC_NOT_CONFIRM`	`-4`	Required DLL function unavailable
`ERR_CODE_CONNECT_FAILED`	`-5`	Connection attempt failed
