Overview

This guide provides comprehensive information for integrating .NET applications with the Port system. It covers initialization, event handling, package development, and project execution.

.NET Integration

Initialization and Setup

private static IPortDic port = Port.GetDictionary("sample");

public Form()
{
   InitializeComponent();

   // Event handlers
   port.OnOccurred += Port_OnOccurred;
   port.OnStatusChanged += Port_OnStatusChanged;

   // Start the Port system
   port.Run();
}

Event Handling

Status Change Events

/// <summary>
/// The OnStatusChanged event notifies when the port server status changes.
/// Provides details through PortStatusHandler.
/// </summary>
private void Port_OnStatusChanged(object sender, PortStatusArgs e)
{
    switch (e.Status)
    {
        case PortStauts.Initializing:
            break;
        case PortStauts.Running:
            OnReady = true;
            break;
        case PortStauts.Stopped:
            break;
        case PortStauts.Shutdown:
            break;
        case PortStauts.Failed:
            break;
    }
}

Occurrence Events

/// <summary>
/// The OnOccurred event handles system events and messages.
/// Provides event details through PortEventArgs.
/// </summary>
private void Port_OnOccurred(object sender, PortEventArgs e)
{
    switch (e.EventType)
    {
        default:
            Console.WriteLine(e.Message);
            break;
    }
}

Test Package Integration

private static IPortDic port = Port.GetDictionary("sample");

public Form()
{
  InitializeComponent();

  // Test Mode: Heater Class with messages
  port.Test("Heater1", new Heater());

  port.OnOccurred += Port_OnOccurred;
  port.OnStatusChanged += Port_OnStatusChanged;

  port.Run();
}

SET/GET Operations

// Setting values
var ok = dic.Set("room1", "BulbOnOff", "On");
if(ok){
    Console.WriteLine("ok");
}

// Getting values - returns 'On'
Console.WriteLine(dic.Get("room1", "BulbOnOff").Text());

// Alternative syntax
port["room1"].Set("BulbOnOff", "Off");

// Getting values - returns 'Off'
Console.WriteLine(dic.Get("room1", "BulbOnOff").Text());

// Getting temperature values
var t1 = dic.Get("room1", "RoomTemp1");
// random number unit Celsius
Console.WriteLine(t1.Text());

var t2 = dic.Get("room1", "RoomTemp2");
// random number unit Fahrenheit
Console.WriteLine(t2.Text());

PortDic Features

Feature	Description
Efficient Lookup	Fast key-value pair retrieval
Multi-platform Support	Available across different programming languages
Real-time Updates	Live data synchronization
Event-driven Architecture	Responsive to system changes
Test Mode Support	Package testing and validation
Type Safety	Proper data type handling and conversion

Project Execution

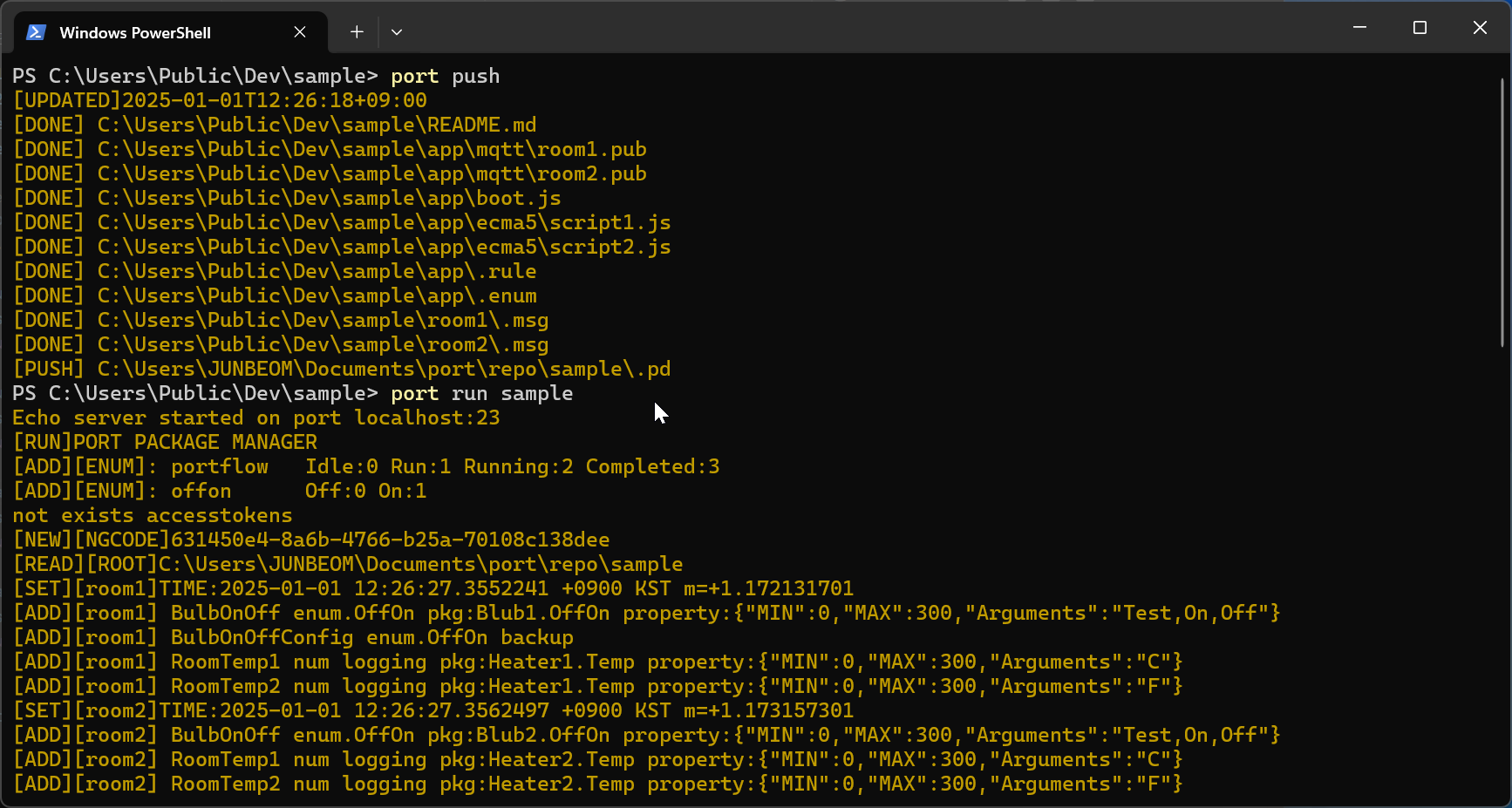

Repository Updates

Before starting your project, ensure all changes are committed to the repository:

port push

Console Execution

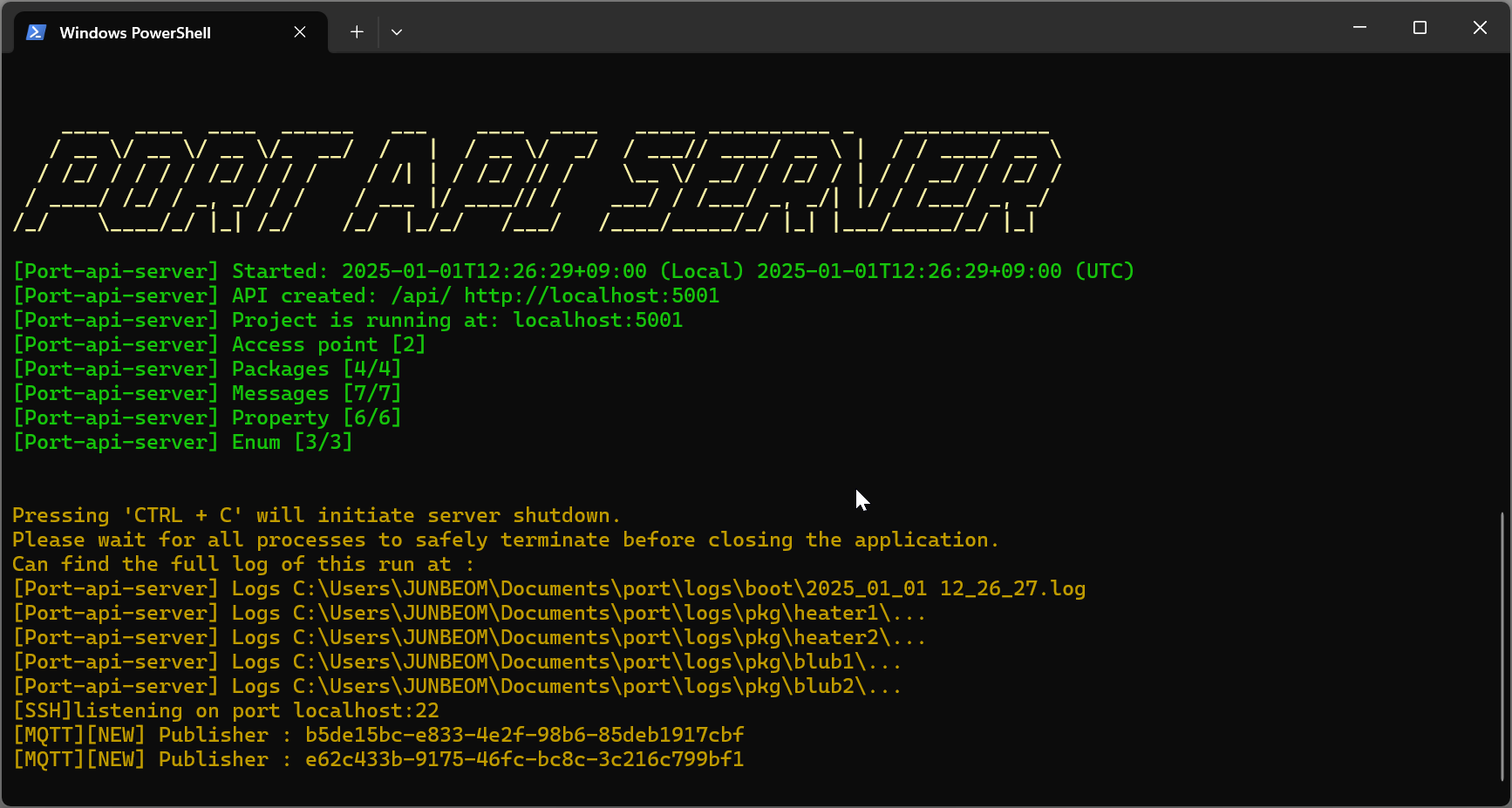

Starting the Server

Command:

port run [project-name]

Process:

1. Upload Changes: Use port push to sync repository
2. Start Server: Execute port run [project-name]
3. Verify Operation: Check console output for success/error messages

Error Handling

!!! tip "Error Summarization" Use --ng ignore flag to summarize only error points: bash port run [project-name] --ng ignore

**Detailed Error Analysis:**
Visit [http://localhost:5001/api/app/ng/?view=table](http://localhost:5001/api/app/ng/?view=table) for comprehensive error details.

GUI Application

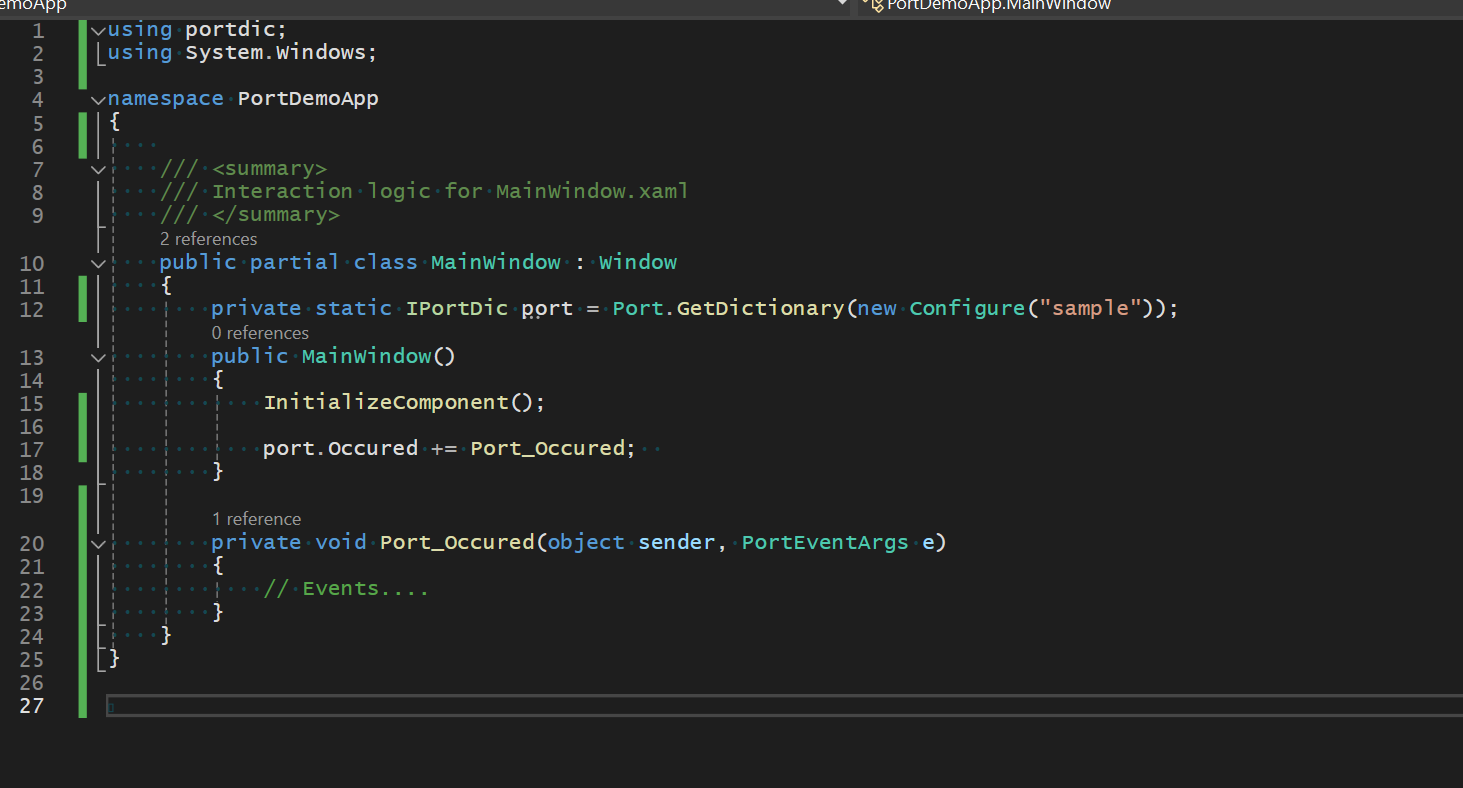

WPF Application Execution

Package Development

Package Development Overview

The Port package system allows developers to create reusable libraries by inheriting from PortObject and linking them to Entries. This enables straightforward usage through entry calls and promotes modular development.

Port packages provide a standardized way to:

Capability	Description
Create reusable components	Build modular libraries for repeated use
Manage dependencies and configurations	Handle package dependencies and settings
Enable seamless integration	Integrate smoothly with the Port ecosystem
Facilitate API-driven interactions	Support REST API-based communication

Package Annotations System

Port packages use annotations to define behavior, configuration, and API endpoints. These annotations provide metadata that the Port system uses for:

Feature	Description
Class Registration	Identifying Port-managed classes
API Generation	Creating REST endpoints automatically
Dependency Injection	Managing services and resources
Validation	Ensuring data integrity and business rules

Annotation Reference

Name	Targets	Type	Arguments	Description
Package	class	-	Class Type	Declares a class as Port-managed for package registration
API	property, field	EntryDataType	dataType, format, keys	Creates API endpoints for property access
Property	property	IProperty	-	Maps properties to pre-declared Entry Properties
Logger	property	ILogger	-	Enables dependency injection for logging services
Flow	class	-	Class Type	Marks a class as a workflow or process flow
Import	field, property	-	packageName, key	Marks dependencies requiring specific functions from packages
Step	method	-	index, relatedEntry	Marks methods as workflow steps with execution order
StepTimer	property	IStepTimer	-	Enables timing and scheduling for workflow steps
FlowControl	property	IFlowControl	-	Provides flow control and navigation capabilities
Valid	method, property	bool	invalid comment	Defines validation logic with custom error messages
EnumCode	enum	-	using	Exposes enum values through API endpoints
Comment	property	-	comment text	Provides API documentation for properties
Mapping	property	-	type	Maps properties to specific data types
ModelProperty	field, property	-	portKey	Marks fields/properties as data model properties
Command	method	-	key	Marks methods as command endpoints

Detailed Annotation Usage

Valid Annotation

The Valid annotation defines validation logic for methods or properties, with custom error entry for validation failures.

[Valid("Invalid for connection")]
public bool Valid()
{
    return true;
}

Usage:

Aspect	Description
Target	Applied to methods returning bool
Error Handling	Provides custom error entries for validation failures
Execution	Automatically called during package validation

Package Annotation

The Package annotation marks a class as a managed package within the Port Dictionary system. Classes decorated with this attribute are automatically instantiated, managed, and made available for interaction within the Port Application ecosystem.

using portpackage;
using portdatatype;

[Package(typeof(DataProcessingService))]
public class DataProcessingService
{
    [API(EntryDataType.Text)]
    public string ProcessData { get; set; }

    [Step(1, "InputData")]
    public void ProcessInput()
    {
        // Processing logic
    }
}

Usage:

Aspect	Description
Target	Applied to class declarations
Registration	Registers the class with the Port system
Functionality	Enables package management and API generation
Lifecycle	Automatic instantiation and lifecycle management

Flow Annotation

The Flow attribute marks a class as a workflow or process flow within the Port Dictionary system. Classes decorated with this attribute are automatically managed as sequential or parallel execution flows, enabling complex business process automation and step-by-step execution control.

[Flow(typeof(ManufacturingProcess))]
public class ManufacturingProcess
{
    [StepTimer]
    public IStepTimer Timer { get; set; }

    [FlowControl]
    public IFlowControl FlowControl { get; set; }

    [Step(1, "StartProcess")]
    public void InitializeProcess()
    {
        // Initialization logic
    }

    [Step(2, "ProcessData")]
    public void ProcessData()
    {
        // Data processing logic
        if (errorCondition)
            FlowControl.JumpStep(5); // Jump to error handling
    }

    [Step(5, "HandleError")]
    public void HandleError()
    {
        // Error handling logic
    }
}

Usage:

Aspect	Description
Target	Applied to class declarations
Flow Management	Automatic step sequencing and execution control
Integration	Timer-based operations and scheduling support
Control	Conditional flow branching and jumping

Import Annotation

The Import attribute marks a class, property, or field as requiring a specific function from a named package. This attribute enables dependency injection and automatic resolution of inter-package dependencies within the port dictionary system.

public class DataProcessor
{
    [Import("MathReferences", "Calculator")]
    private IFunction calculator;

    [Import("LoggingReferences", "FileLogger")]
    public IFunction Logger { get; set; }

    public void ProcessData()
    {
        var result = calculator.Binding("ProcessingData");
        Logger.Binding("LogProcessingResult");
    }
}

Usage:

Aspect	Description
Target	Applied to fields and properties
Dependency Injection	Automatic function resolution at runtime
Modular Architecture	References-based package dependencies
Documentation	Compile-time dependency documentation

Step Annotation

The Step attribute marks a method as a step in a workflow sequence that will be automatically executed by the Flow system in the order specified by the index parameter. This attribute enables the creation of sequential or conditionally branching workflows with precise execution control.

[Flow(typeof(ManufacturingProcess))]
public class ManufacturingProcess
{
    [Step(1, "InitializeSystem")]
    public void Initialize()
    {
        // Initialization logic
    }

    [Step(2, 1001, "ProcessMaterial", "QualityCheck")]
    public void ProcessMaterial()
    {
        // Processing logic with collection event 1001
    }

    [Step(10, "FinalizeProcess")]
    public void Finalize()
    {
        // Finalization logic
    }
}

Usage:

Aspect	Description
Target	Applied to methods only
Execution Order	Index determines execution order (lower indices execute first)
Integration	Flow control and timing systems support
Events	Collection event integration for advanced monitoring

StepTimer Annotation

The StepTimer attribute specifies that a property should be injected with a timing system for workflow steps. This enables precise timing control, delayed execution, and one-time action scheduling within the flow execution context.

[Flow(typeof(TimedProcess))]
public class TimedProcess
{
    [StepTimer]
    public IStepTimer Timer { get; set; }

    [Step(1)]
    public void StartProcess()
    {
        // Schedule a timeout action
        Timer.Reserve("timeout", 5000, () => HandleTimeout());

        // Execute something once
        Timer.Once("initialize", () => InitializeResources());
    }

    private void HandleTimeout()
    {
        Console.WriteLine($"Process timed out after {Timer.TotalSeconds} seconds");
    }
}

Usage:

Aspect	Description
Target	Applied to IStepTimer properties
Timing Features	Precise timing and elapsed time measurement
Scheduling	Delayed action execution with millisecond precision
One-time Actions	One-time action scheduling with duplicate prevention

FlowControl Annotation

The FlowControl attribute specifies that a property should be injected with flow control capabilities for workflow navigation. This enables dynamic navigation between steps, conditional logic, error handling, and non-linear execution patterns.

[Flow(typeof(DataProcessingFlow))]
public class DataProcessingFlow
{
    [FlowControl]
    public IFlowControl FlowControl { get; set; }

    [Step(1)]
    public void ValidateData()
    {
        if (dataIsInvalid)
            FlowControl.JumpStep(99); // Jump to error handling step
    }

    [Step(99)]
    public void HandleError()
    {
        // Error handling logic
    }
}

Usage:

Aspect	Description
Target	Applied to IFlowControl properties
Control Features	Dynamic step jumping for conditional workflows
Error Handling	Error handling and recovery mechanisms
Branching	Loop and branching control structures

Logger Annotation

The Logger annotation specifies that a field should be injected with a logging system or service.

using portpackage;
using portdatatype;

[Logger]
public ILogger Logger { get; set; }

// Usage example
Logger.Write(string.Join(",", values));

Usage:

Aspect	Description
Target	Applied to ILogger properties
Injection	Enables dependency injection for logging
Capability	Provides centralized logging capabilities

Property Annotation

The Property annotation maps a property to declared Message Properties for configuration access.

using portpackage;
using portdatatype;

[Property]
public IProperty Property { get; set; }

// Usage example
if (this.Property.TryToGetValue("Unit", out string value))
{
    // Handle configuration value
}

Usage:

Aspect	Description
Target	Applied to IProperty properties
Access	Enables access to configuration values
Retrieval	Supports key-value property retrieval

API Annotation

Properties declared with API annotation become API endpoints, accessible via REST API. This attribute marks a property as an API endpoint within the Port Dictionary system, enabling automatic API registration and discovery.

using portpackage;
using portdatatype;

[Package(typeof(SensorController))]
public class SensorController
{
    [API(EntryDataType.Num)]
    public double Temperature { get; set; }

    [API(EntryDataType.Text, PropertyFormat.Json, "Status", "ErrorCode")]
    public string SystemStatus { get; set; }

    [API(EntryDataType.List, PropertyFormat.Array, 0, 1, 2)]
    public List<string> SensorReadings { get; set; }
}

Usage:

Aspect	Description
Target	Applied to properties and fields
API Generation	Creates REST API endpoints automatically
Type Safety	Type-safe data handling with EntryDataType specification
Format Support	Flexible format support (JSON, Array, etc.)
Validation	Required property validation and schema enforcement

Mapping Annotation

The Mapping attribute maps properties to specific data types. This enables type conversion and mapping operations.

public class DataMapper
{
    [Mapping(typeof(string))]
    public object StringData { get; set; }

    [Mapping(typeof(int))]
    public object IntegerData { get; set; }
}

Usage:

Aspect	Description
Target	Applied to properties
Type Mapping	Maps to specific data types
Type Conversion	Enables automatic type conversion
Data Transformation	Used for data transformation operations

ModelProperty Annotation

The ModelProperty attribute marks fields and properties as data model properties. This enables model-based operations and data binding.

public class SensorData
{
    [ModelProperty("Temperature")]
    public double Temperature { get; set; }

    [ModelProperty("Humidity")]
    public double Humidity { get; set; }

    [ModelProperty("Timestamp")]
    public DateTime Timestamp { get; set; }
}

Usage:

Aspect	Description
Target	Applied to fields and properties
Data Models	Marks fields/properties as data model properties
Data Binding	Enables model-based data binding
Port Key Mapping	Maps to specific port keys for data access

EnumCode Annotation

The EnumCode annotation exposes enum values through API endpoints for external access.

[EnumCode]
public enum TestEnum : ushort
{
    _ = 0,
    TestEnumItem1,
    TestEnumItem2,
}

Usage:

Aspect	Description
Target	Applied to enum declarations
Accessibility	Makes enum values accessible via API
Integration	Enables external systems to query enum information

Comment Annotation

The Comment annotation provides documentation for properties, exposed through the API.

[API, Comment("this is a numeric")]
public int NValue { get => 3; }

Usage:

Aspect	Description
Application	Applied alongside other annotations
Documentation	Provides API documentation
Experience	Enhances developer experience with contextual information

Command Annotation

The Command annotation marks methods as command endpoints, making them accessible via the Port command API.

[Command("start")]
public void StartProcess(string key)
{
    // Command implementation
}

Usage:

Aspect	Description
Target	Applied to methods
Parameter	Command key identifier (optional)
Purpose	Exposes methods as remote command endpoints

Workflow and Flow Control

The Port system provides comprehensive workflow management through the Flow system, enabling complex business process automation with step-by-step execution control.

Flow System Overview

The Flow system allows developers to create sequential or parallel execution flows using attribute-based configuration. This enables:

Feature	Description
Sequential Execution	Step-by-step workflow execution with automatic ordering
Conditional Branching	Dynamic flow control with conditional logic and error handling
Timer Integration	Precise timing control and scheduled operations
Event Integration	Collection event support for external system integration
State Management	Automatic state tracking and flow control

Flow Control Interfaces

The Flow system provides two key interfaces for workflow management:

IFlowControl Interface

public interface IFlowControl
{
    /// <summary>
    /// Jumps to a specific step in the workflow
    /// </summary>
    /// <param name="index">The index of the step to jump to</param>
    void JumpStep(int index);
}

Key Features:

• Dynamic Navigation: Jump between workflow steps based on conditions
• Error Handling: Redirect flow to error handling steps
• Loop Control: Implement loops and conditional branching

IStepTimer Interface

public interface IStepTimer
{
    DateTime Since { get; }
    double TotalSeconds { get; }
    void Reset();
    string Reserve(string id, int ms, Action func);
    string Once(string id, Action action);
}

Key Features:

• Precise Timing: Millisecond-precise timing control
• Scheduled Actions: Reserve actions for delayed execution
• One-time Operations: Execute actions exactly once per timer lifetime
• Task Management: Cancel and manage scheduled tasks

Flow Execution States

The Flow system tracks execution states for each step:

State	Description
Idle	Step has not started execution yet
Ing	Step is currently being executed
Done	Step has finished execution successfully

References and Import System

The Port system provides a sophisticated package management system through References and Import mechanisms, enabling modular architecture and dependency injection.

References System

The References system allows developers to create reusable function collections that can be shared across different packages and applications.

IReference Interface

public interface IReference
{
    /// <summary>
    /// Gets a function by its key name
    /// </summary>
    /// <param name="key">The unique string identifier of the function</param>
    /// <returns>The IFunction instance or null if not found</returns>
    IFunction this[string key] { get; }

    /// <summary>
    /// Gets the complete collection of functions in this package
    /// </summary>
    IEnumerable<IFunction> API { get; }
}

IFunction Interface

public interface IFunction
{
    string Key { get; }
    Type Type { get; }
    IFunction Binding(string EntryKey);
    string Benchmark(string Entrykey, params string[] args);
}

Import System

The Import system enables dependency injection and automatic resolution of inter-package dependencies.

Import Attribute Usage

public class DataProcessor
{
    [Import("MathReferences", "Calculator")]
    private IFunction calculator;

    [Import("LoggingReferences", "FileLogger")]
    public IFunction Logger { get; set; }

    public void ProcessData()
    {
        // Use imported functions
        var result = calculator.Binding("ProcessingData");
        Logger.Binding("LogProcessingResult");
    }
}

Package Helper System

The PackageHelper class provides the implementation for managing function collections and enabling function discovery.

public sealed class PackageHelper : IReference
{
    internal APICollection api = new APICollection();

    public IFunction this[string key] => this.api.FirstOrDefault(f => f.Key == key);
    IEnumerable<IFunction> IReference.API => api;
}

Creating .NET Packages

Port applications organize operations at the package level and functionality at the message level. All operations are defined within messages, enabling code reusability through message-based architecture.

Class Library Examples

Bulb Package Example

using portpackage;
using portdatatype;

[Package(typeof(Bulb))]
public class Bulb
{
    [Logger]
    public ILogger Logger { get; set; }

    [Property]
    public IProperty Property { get; set; }

    private SerialPortStream serialPort = new SerialPortStream();

    [Valid("")]
    public bool Valid()
    {
        return true;
    }

    private string comport;
    [API(EntryDataType.Text)]
    public string Comport
    {
        set
        {
            try
            {
                if (this.serialPort.PortName != value)
                {
                    this.serialPort = new SerialPortStream();
                    this.serialPort.PortName = value.ToString();
                    this.serialPort.BaudRate = 9600;
                    this.serialPort.DataBits = 8;
                    this.serialPort.StopBits = StopBits.One;
                    this.serialPort.Parity = Parity.Even;
                }
            }
            catch (System.Exception ex)
            {
                Logger.Write("[ERROR]" + ex.Message);
            }
        }
        get
        {
            return comport;
        }
    }

    private string offon = string.Empty;
    [API(EntryDataType.Enum, PropertyFormat.Json)]
    public string OffOn
    {
        set
        {
            var prop = this.Property;
            try
            {
                if (prop != null)
                {
                    this.offon = value;
                }
            }
            catch (Exception ex)
            {
                Logger.Write("[ERROR]" + ex.Message);
            }
        }
        get
        {
            return this.offon;
        }
    }
}

Heater Package Example

using portpackage;
using portdatatype;

[Package(typeof(Heater))]
public class Heater
{
    [Logger]
    public ILogger Logger { get; set; }

    [Property]
    public IProperty Property { get; set; }

    [API(EntryDataType.Text)]
    public string Power { set; get; }

    [Valid("Invalid for connection")]
    public bool Valid()
    {
        return true;
    }

    private static Random r = new Random(100);

    [API(EntryDataType.Num, PropertyFormat.Json, "Unit")]
    public double Temp
    {
        get
        {
            try
            {
                if (this.Property != null)
                {
                    if (this.Property.TryToGetValue("Unit", out string v1) && (v1 == "F"))
                    {
                        var ret = (r.NextDouble() * 9 / 5) + 32;
                        return ret == 0 ? 1 : ret;
                    }
                    else if (this.Property.TryToGetValue("Unit", out string v2) && (v2 == "C"))
                    {
                        var ret = (r.NextDouble());
                        return ret == 0 ? 1 : ret;
                    }
                    else
                    {
                        return double.NaN;
                    }
                }
                return double.NaN;
            }
            catch (Exception e)
            {
                if (Logger != null)
                    Logger.Write(e.Message);
            }
            return double.NaN;
        }
    }
}

!!! warning "Array Declaration Warning" When creating a library in a .NET environment, declaring an excessively large array may result in a PrivateImplementationDetails error. It is recommended to use a List instead.

Protocol Integration and Broadcasting

The Port system provides comprehensive support for various industrial communication protocols through the broadcasting system. This enables seamless integration with different automation and manufacturing systems.

Broadcast System Overview

The broadcast system allows you to configure and manage multiple communication protocols simultaneously within a single Port application. Each protocol can be configured independently and provides specialized functionality for different industrial communication needs.

// Initialize Port Dictionary
var portdic = Port.GetDictionary("sample");

// Configure and start different protocols
var gem = portdic.BroadCast<GEM>(Port.CreateBuilder(BroadcastType.GEM)
    .Mode(Mode.Active)
    .Listen("127.0.0.1")
    .Build());

var mqtt = portdic.BroadCast<MQTT>(Port.CreateBuilder(BroadcastType.MQTT)
    .Listen("127.0.0.1:8080")
    .Users(new User("admin", "admin"))
    .AllowRemotes("127.0.0.1")
    .UseMqttProtocol(false)
    .Build());

var rtsp = portdic.BroadCast<RTSP>(Port.CreateBuilder(BroadcastType.RTSP)
    .Build());

var opcua = portdic.BroadCast<OPCUA>(Port.CreateBuilder(BroadcastType.OPCUA)
    .Listen("opc.tcp://localhost:4840")
    .Build());

Supported Broadcast Types

Protocol	Type	Description	Use Cases
GEM	BroadcastType.GEM	SECS/GEM for semiconductor equipment	Equipment control, data collection, alarm management
MQTT	BroadcastType.MQTT	Message Queuing Telemetry Transport	IoT devices, lightweight messaging, real-time data
RTSP	BroadcastType.RTSP	Real-Time Streaming Protocol	Video streaming, live data feeds, monitoring
OPC UA	BroadcastType.OPCUA	Open Platform Communications Unified Architecture	Industrial automation, secure data exchange

GEM (SECS/GEM) Integration

GEM (Generic Equipment Model) is the industry standard for semiconductor equipment communication, providing comprehensive control and monitoring capabilities.

// GEM Configuration
var gem = portdic.BroadCast<GEM>(Port.CreateBuilder(BroadcastType.GEM)
    .Mode(Mode.Active)                    // Active or Passive mode
    .Listen("127.0.0.1:5000")            // Listening address and port
    .DeviceID("EQ001")                    // Unique equipment identifier
    .T1(10)                              // Communication timeout
    .T2(5)                               // Reply timeout
    .T3(10)                              // Connection timeout
    .T4(10)                              // Inter-character timeout
    .T5(10)                              // Inter-message timeout
    .T6(5)                               // Control timeout
    .T7(10)                              // Event report timeout
    .T8(5)                               // Data collection timeout
    .LogFileExt(".log")                  // Log file extension
    .LogDir("./logs")                    // Log directory
    .LogRetentionDay(30)                 // Log retention period
    .LogRotationHour(24)                 // Log rotation interval
    .MaxRetriesCount(3)                  // Maximum retry attempts
    .RetryDelaySec(5)                    // Retry delay
    .ConnectTimeout(30)                  // Connection timeout
    .Build());

// GEM Event Handling
gem.OnS1F1_AreYouOnline += (sender, e) => {
    // Handle Are You Online request
    Console.WriteLine("Received S1F1 - Are You Online");
};

gem.OnS1F13_EstablishCommunicationsRequest += (sender, e) => {
    // Handle communication establishment
    Console.WriteLine("Received S1F13 - Establish Communications");
};

GEM Key Features:

• Equipment Status Management: Real-time equipment state monitoring
• Data Collection: Automated data collection and reporting
• Alarm Management: Comprehensive alarm and exception handling
• Material Handling: Carrier and material transfer control
• Recipe Management: Process recipe and program management
• Remote Control: Host-initiated equipment control

MQTT Integration

MQTT provides lightweight, publish-subscribe messaging for IoT and real-time applications.

// MQTT Configuration
var mqtt = portdic.BroadCast<MQTT>(Port.CreateBuilder(BroadcastType.MQTT)
    .Listen("127.0.0.1:1883")            // MQTT broker address
    .Users(new User("admin", "admin"))   // Authentication credentials
    .AllowRemotes("127.0.0.1")          // Allowed remote addresses
    .UseMqttProtocol(true)              // Enable MQTT protocol
    .ClientId("PortClient")             // MQTT client identifier
    .KeepAlive(60)                      // Keep-alive interval
    .CleanSession(true)                 // Clean session flag
    .QoS(1)                            // Quality of Service level
    .Retain(false)                     // Retain messages flag
    .Build());

// MQTT Event Handling
mqtt.OnMessageReceived += (sender, e) => {
    Console.WriteLine($"Received MQTT message: {e.Topic} - {e.Payload}");
};

mqtt.OnConnected += (sender, e) => {
    Console.WriteLine("MQTT client connected");
    mqtt.Subscribe("equipment/status");
    mqtt.Subscribe("alarms/#");
};

mqtt.OnDisconnected += (sender, e) => {
    Console.WriteLine("MQTT client disconnected");
};

MQTT Key Features:

• Lightweight Messaging: Efficient publish-subscribe communication
• Quality of Service: Reliable message delivery with QoS levels
• Topic-based Routing: Hierarchical topic structure for message organization
• Retained Messages: Last known good value persistence
• Will Messages: Last will and testament for connection monitoring

RTSP Integration

RTSP provides real-time streaming capabilities for video and live data feeds.

// RTSP Configuration
var rtsp = portdic.BroadCast<RTSP>(Port.CreateBuilder(BroadcastType.RTSP)
    .Listen("rtsp://127.0.0.1:8554")    // RTSP server address
    .StreamPath("/live")                 // Stream path
    .Transport("tcp")                    // Transport protocol
    .BufferSize(1024)                    // Buffer size
    .Timeout(30)                        // Connection timeout
    .Build());

// RTSP Event Handling
rtsp.OnStreamStarted += (sender, e) => {
    Console.WriteLine($"RTSP stream started: {e.StreamUrl}");
};

rtsp.OnStreamStopped += (sender, e) => {
    Console.WriteLine($"RTSP stream stopped: {e.StreamUrl}");
};

rtsp.OnClientConnected += (sender, e) => {
    Console.WriteLine($"RTSP client connected: {e.ClientAddress}");
};

RTSP Key Features:

• Real-time Streaming: Low-latency video and data streaming
• Multiple Transports: TCP and UDP transport support
• Session Management: Client session control and monitoring
• Bandwidth Control: Adaptive streaming based on network conditions
• Authentication: Secure stream access control

OPC UA Integration

OPC UA provides secure, platform-independent communication for industrial automation systems.

// OPC UA Configuration
var opcua = portdic.BroadCast<OPCUA>(Port.CreateBuilder(BroadcastType.OPCUA)
    .Listen("opc.tcp://localhost:4840")  // OPC UA server endpoint
    .ApplicationInfo("PortApp", "urn:PortApp", "urn:PortApp")  // Application information
    .SecurityConfig(SecurityMode.SignAndEncrypt, SecurityPolicy.Basic256Sha256)  // Security configuration
    .Credentials("admin", "password")    // Username/password authentication
    .Timeouts(30000, 60000)             // Connection and session timeouts
    .BufferSizes(65536, 65536)          // Send/receive buffer sizes
    .Reconnection(5000, 30000)          // Reconnection settings
    .SessionSettings("PortSession", new[] { "en-US" })  // Session configuration
    .Build());

// OPC UA Event Handling
opcua.OnConnected += (sender, e) => {
    Console.WriteLine("OPC UA client connected");
    // Subscribe to data changes
    opcua.Subscribe("ns=2;s=Temperature", 1000);
    opcua.Subscribe("ns=2;s=Pressure", 1000);
};

opcua.OnDataChanged += (sender, e) => {
    Console.WriteLine($"OPC UA data changed: {e.NodeId} = {e.Value}");
};

opcua.OnAlarmTriggered += (sender, e) => {
    Console.WriteLine($"OPC UA alarm triggered: {e.AlarmId} - {e.Message}");
};

OPC UA Key Features:

• Security: Built-in authentication, authorization, and encryption
• Data Modeling: Rich information model with complex data types
• Service-oriented: Comprehensive service set for data access and control
• Platform Independence: Cross-platform communication support
• Scalability: Support for large-scale industrial applications

Configuration Builder Pattern

The Port system uses a fluent builder pattern for configuring broadcast protocols, making it easy to set up complex configurations with readable code.

// Builder Pattern Example
var config = Port.CreateBuilder(BroadcastType.GEM)
    .Mode(Mode.Active)                  // Set communication mode
    .Listen("127.0.0.1:5000")          // Set listening address
    .DeviceID("EQ001")                 // Set device identifier
    .T1(10).T2(5).T3(10)              // Set timeout values
    .LogFileExt(".log")                // Configure logging
    .LogDir("./logs")                  // Set log directory
    .MaxRetriesCount(3)                // Set retry behavior
    .ConnectTimeout(30)                // Set connection timeout
    .Build();                          // Build configuration

var gem = portdic.BroadCast<GEM>(config);

Builder Pattern Benefits:

• Fluent Interface: Method chaining for readable configuration
• Type Safety: Compile-time validation of configuration options
• Flexibility: Easy to add new configuration options
• Validation: Built-in validation of configuration parameters
• Reusability: Configuration objects can be reused and modified

Publishing Libraries

Prerequisites

Before publishing your .NET Core project, ensure you have the following:

Requirement	Description
.NET SDK	Install the latest version
C# Extension	Install in Visual Studio Code
Verified Build	Ensure your project builds and runs correctly

Summary

This .NET Integration Guide provides comprehensive coverage of:

Key Integration Points

• Initialization: Setting up Port system with .NET applications
• Event Handling: Managing status changes and system events
• Package Development: Creating reusable components with annotations
• Workflow Management: Implementing complex business processes with Flow system
• References System: Building modular architecture with function collections
• Import System: Enabling dependency injection and inter-package dependencies
• Protocol Integration: Supporting multiple industrial communication protocols (GEM, MQTT, RTSP, OPC UA)
• Broadcasting System: Managing multiple communication protocols simultaneously
• Project Execution: Running and monitoring applications

Annotation System

The Port system provides a comprehensive annotation system including:

Category	Annotations	Purpose
Package Management	[Package], [Flow], [Import]	Class registration and dependency injection
Workflow Control	[Step], [StepTimer], [FlowControl]	Workflow execution and timing
API Endpoints	[API],	REST API generation
Data Handling	[Property], [Mapping], [ModelProperty]	Data management and transformation
Validation	[Valid]	Data validation and business rules
Documentation	[Comment], [EnumCode]	API documentation and enum exposure
Control Operations	[Command]	Control and command operations

Best Practices

• Use proper annotation patterns for package development
• Implement comprehensive error handling with [Valid] attributes
• Follow logging and monitoring guidelines with [Logger] attributes
• Design modular architecture using References and Import systems
• Implement workflow control with Flow system for complex processes
• Test packages thoroughly before deployment
• Use appropriate data types and formats for Entry attributes

Advanced Features

• Flow System: Sequential and parallel workflow execution
• Timer Integration: Precise timing control and scheduled operations
• Dependency Injection: Automatic resolution of inter-package dependencies
• REST API Generation: Automatic endpoint creation from annotations
• Industrial Protocol Support: SECS/GEM, OPC UA, MQTT, RTSP integration
• Broadcasting System: Multi-protocol communication management
• Configuration Builder: Fluent interface for protocol configuration
• Real-time Monitoring: Event-driven architecture with status tracking

Next Steps

• Explore the React Integration Guide for web development
• Review Package Management for advanced features
• Check SECS Protocol for industrial communication
• Study Workflow Examples for complex process automation

---

For additional support and examples, refer to the Port Documentation.
